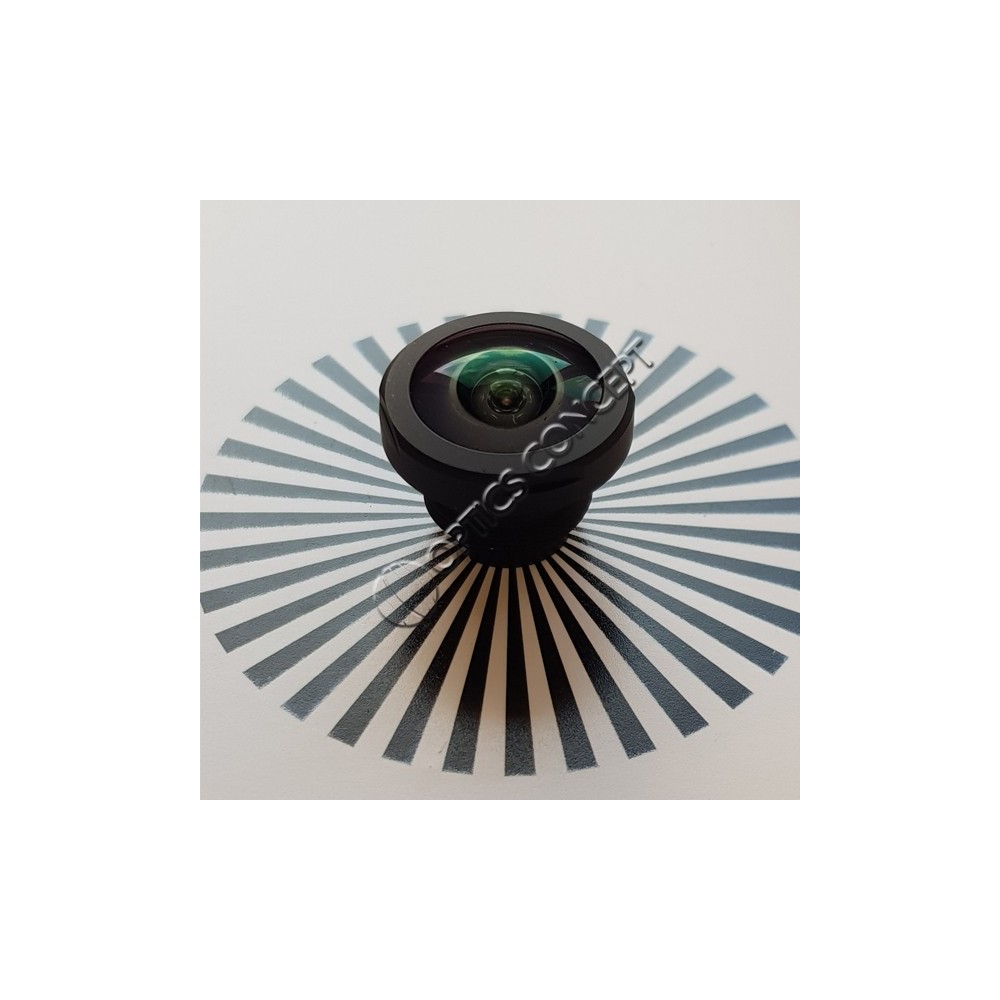

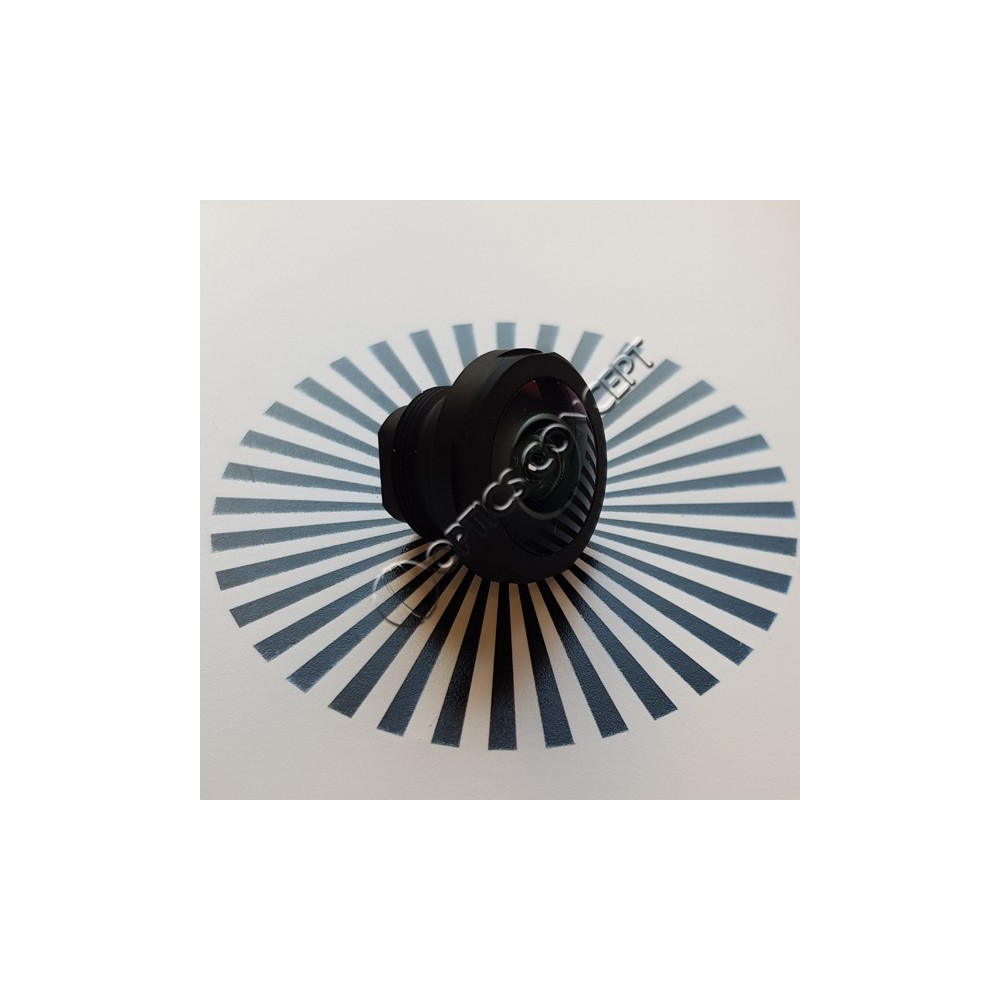

Lens DSL184

DSL184A-650F2.0

Tailored DistortionTM Miniature SuperFisheyeTM Lens

Key Features

•  SuperFisheyeTM FOV: 180°
•  Tailored DistortionTM
•  Superior low light performance: F/2.0 aperture
•  Compact size

Applications :

•  Automotive Surround View
•  Security and Surveillance
•  Internet of Things (IoT)
•  Computer Vision

DSL184A-650F2.0
€58.13
Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Shipment within 2 to 3 weeks
Description

The DSL184 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 180 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

Description
Miniature super-fisheye
Height
18,5 mm
Diameter
17,70 mm
Lens barrel thread
M12 x 0,50
Total length
22,0 mm
Back focus
1,9 mm
Focal length
1,4 mm
Maximum FOV for image circle
180° at 4.8mm image circle
Sensor size
1/2"
Image circle
4,8 mm
Resolution
VGA
F/#
F/2.0
Distortion
+14% F-θ
Construction
Hybride
Body material
Metal
Filter
IR intégré
Couleur
Noir
Taille du capteur maximale
1/2" ou plus grand
Champ de vision maximum
Supérieur à 175°
Focale
0 à 2 mm
Ouverture
Inférieur ou égal à 2
