Reference: DSL491D-655-F2.8

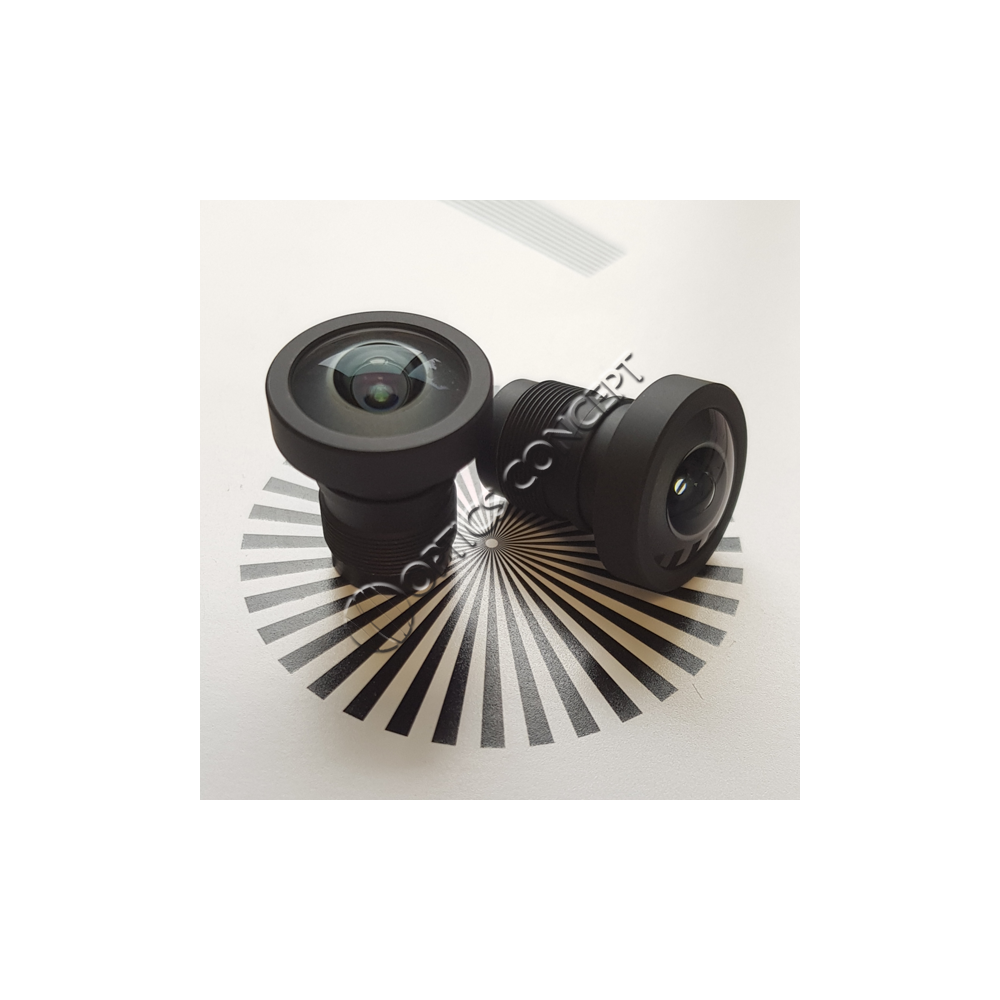

The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Key Features :
• HDR-Optimized design
• All-Glass Design for thermal stability
• Good low light performance: F/2.8 aperture
• Compact size
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
Data sheet
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.
NIR versions: No IR cut filter
A brand new lens with 60°FOV. Perfect for new 4K sensors
Compatibility : GoPro® HERO1, HERO2, HERO3, HERO3+ and HERO4®.
This lens belongs to a new optical design generation. The DSL606 offer the best technology.
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
The DSL949 is a hybrid lens designed for 1/3” imagers withup to 5MP resolution. Special design techniques enable the DSL949 to achieve a wider than normal field of view with very low distortion in a small form factor.
DSL217C-670-F1.8
• Maximum field of view (FOV): 185o
• F/1.8 aperture for low-light performance
• Hybrid glass-plastic design
• Suitable for megapixel resolution sensors
Key Features :
• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).
The DSL202 lens is a multi-element glass lens optimized for imager sizes up to 1/3" format and HD resolution. The all glass, all metal construction enables good thermal stability. The DSL202 is also environmentally ruggedized
Key Features
•Wide field of view
•All glass elements
Applications
• Rear-view Automotive
• Security & Surveillance
• Industrial
Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.
The DSL935 lens is a multiple element glass lens optimized for 1/1.8” format imagers with up to 5MP resolution. The small form factor makes this lens ideal for high performance handheld cameras.
Key Features :
• SuperFisheye FOV: 194°
• Tailored DistortionTM
• Superior low light performance: F/2.2 aperture
• Compact size
Applications :
• Automotive Surround View
• Security and Surveillance
• Internet of Things (IoT)
• Computer Vision
DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
DSL315B-650-F2.3
Key Features :
4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability
Applications :
• Security / Surveillance
• VR / 360o cameras
• Computer Vision
The DSL978 is a compact, low F/# lens designed for low light HD/HDR applications. This lens is optimized for useHD sensors with imager format up to 1/3”. The all-glass design provides stable image quality over a wide temperature range.
Key Features :
• NoGhostTM
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent Thermal Stability
DSL419B-650-F2.0
Key Features :
• SuperFisheye FOV: 180°
• All-Glass Design• Good low light performance: F/2.0 aperture
• Compact size
Applications :
• Security and Surveillance
• Drones
• Immersive Imaging
• Video Communication
• Consumer Devices and IoT
