Lens DSL224D

Key Features:

•  176° wide angle FoV
•  Good low light performance: F/2.0 relative aperture
•  All glass design to optimize thermal stability

Applications:

•  Automotive Rear View Cameras
•  Security and Surveillance
•  Computer Vision

DSL224D-650-F2
€68.08
Volume discounts
Quantity Discount You Save
5 3% Up to €10.21
10 5% Up to €34.04

Quantity

Shipment within 2 to 3 weeks
Description

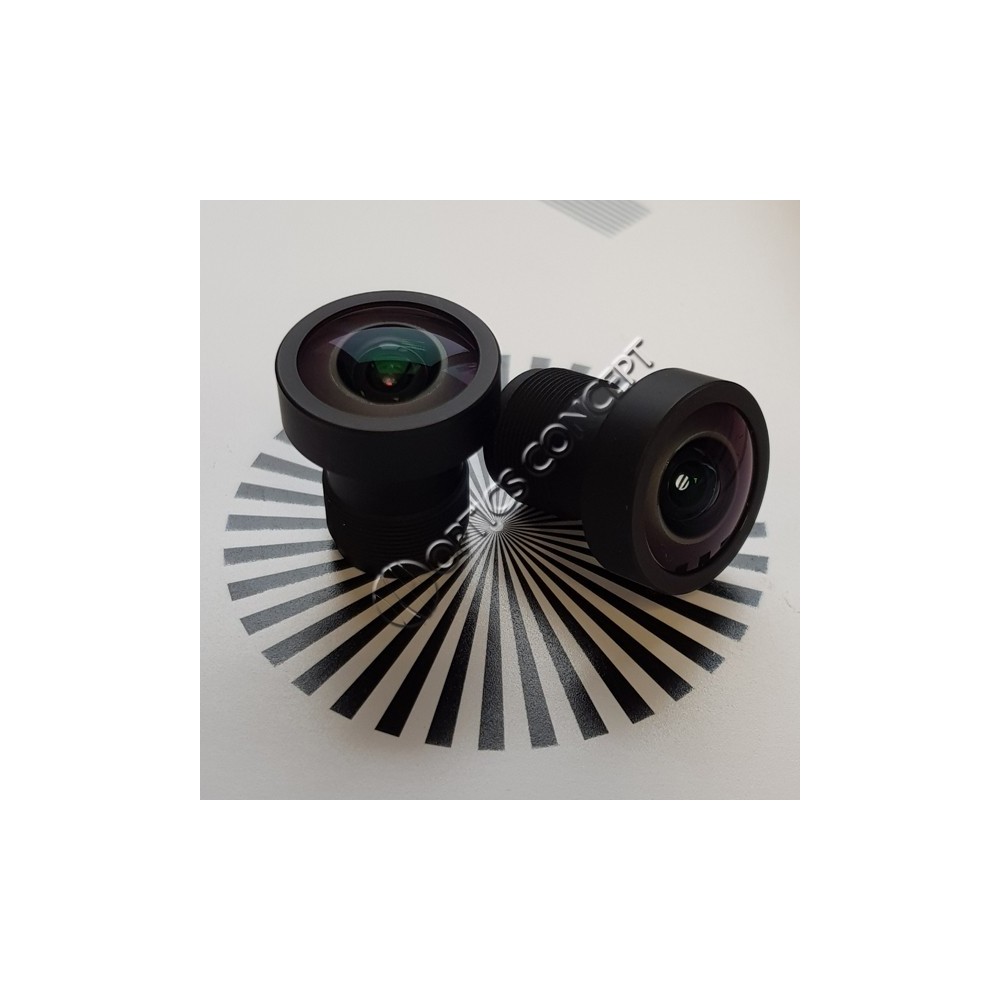

The DSL224 lens is a miniature, wide-angle all glass lens designed for 1/3”, 1.3MP sensors. The wide field of view, low F/#, and distortion characteristics make this lens ideal for security and automotive applications.

Lens barrel thread
M12 x 0,50
Focal length
2,16mm
Sensor size
1/3"
Resolution
1,3MP
F/#
F/2.0
Distortion
-8,5% F-θ
Back focus
2,5mm
Description
Miniature wide-angle lens
Height
20,mm
Diameter
17,00mm
Total length
21,6mm
Maximum FOV for image circle
176° pour cercle d'image 6,0mm
Image circle
6mm
Construction
Hybride
Filter
IR intégré
Color
Black
Taille du capteur maximale
1/3"
Champ de vision maximum
Supérieur à 175°
Focale
2 à 5 mm
Résolution
1 à 3 Mpx
Ouverture
Inférieur ou égal à 2
