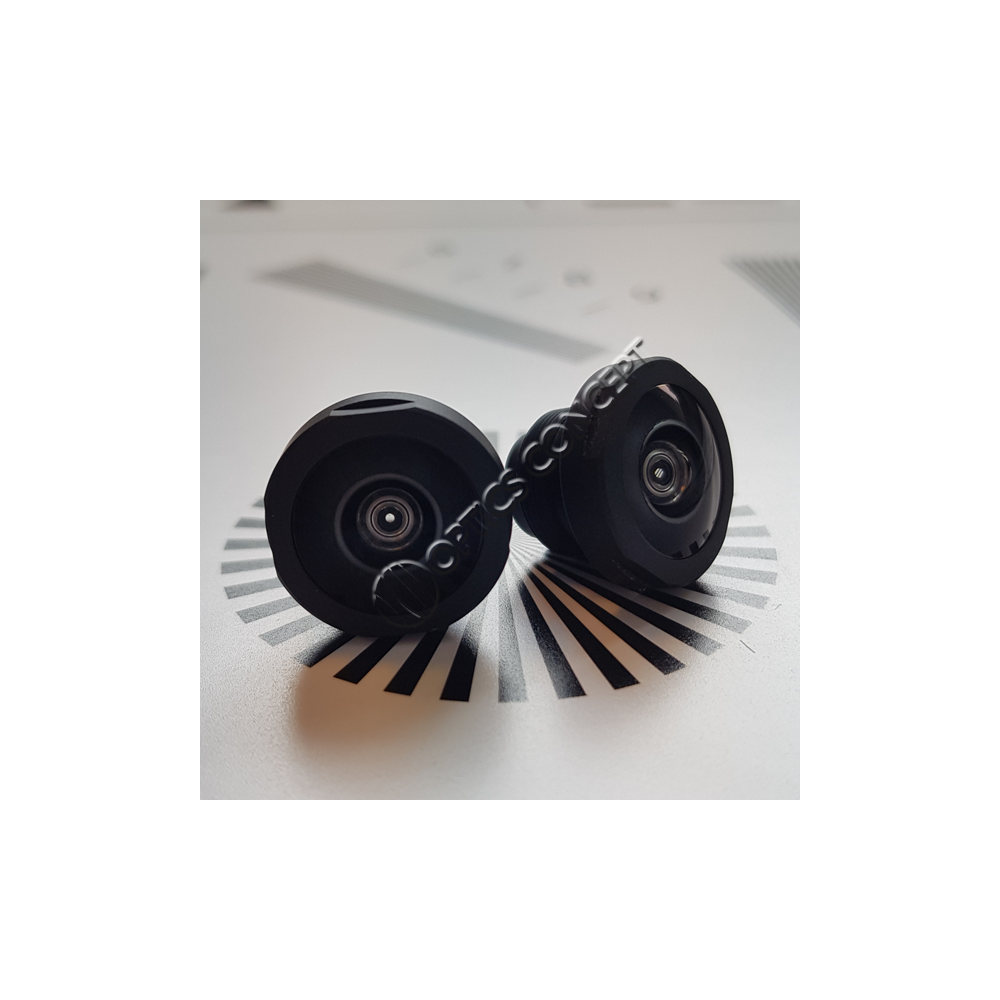

Lens DSL183

The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

DSL183B-650-F2.2
€58.13
Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Last items in stock
Description
Key Features:

SuperFisheye FOV: 181°
Tailored DistortionTM
Superior low light performance: F/2.2 aperture
Compact size

Applications :

Automotive Surround View
Security and Surveillance
Internet of Things (IoT)
Computer Vision

Description
Miniature super-fisheye
Height
15,2mm
Diameter
17,4mm
Lens barrel thread
M12 x 0,50
Total length
17,0mm
Back focus
1,8mm
Focal length
1,3mm
Maximum FOV for image circle
181° at 5.0mm image circle
Sensor size
1/1,8"
Image circle
5,0mm
Resolution
1,3MP
F/#
F/2.2
Distortion
+20% from F-θ
Construction
Hybride
Filter
IR intégré
Taille du capteur maximale
1/2" ou plus grand
Champ de vision maximum
Supérieur à 175°
Focale
0 à 2 mm
Résolution
1 à 3 Mpx
Ouverture
2 à 3
