Lens DSL322

DSL322A-650-F2.0

Key Features :

• Miniature Wide Angle Day/Night Lens
• Compact design
• High image quality
• Wide angle design

Applications :

• Security / Surveillance
• Computer Vision

DSL322A
€58.13
Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Shipment within 2 to 3 weeks
Description

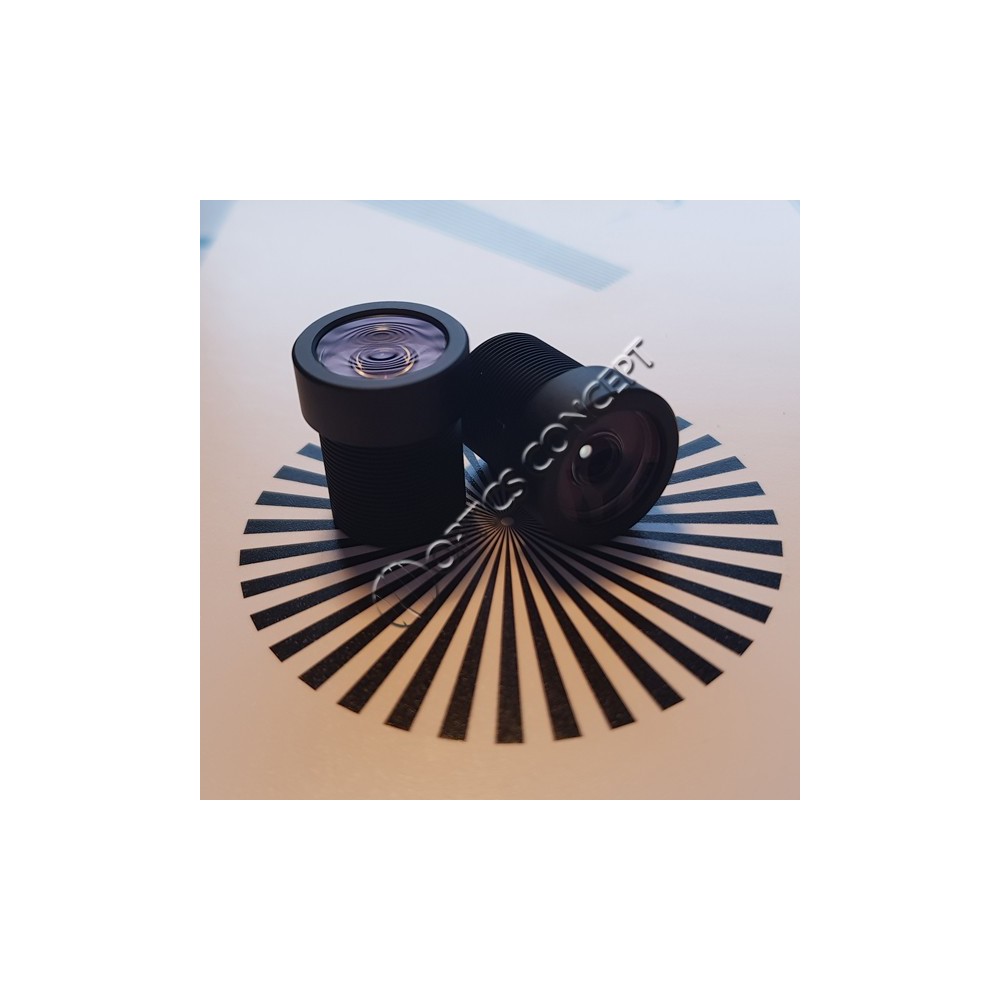

The DSL322 is a miniature, wide-angle, day/night lens designed for 1/4” sensors with HD resolution. This lens provides a design field of view of 120 degrees in a compact package and is a Day/Night optimized (NIR corrected) lens. The improved near infrared performance makes this lens ideal for security, surveillance and machine vision applications.

Lens barrel thread
M12 x 0,50
Focal length
2,4mm
Sensor size
1/4"
Resolution
1,3MP
F/#
F/2.0
Distortion
-7% F-θ
Back focus
3,8mm
Description
Miniature wide-angle lens
Height
20,5mm
Diameter
14mm
Total length
20,5mm
Maximum FOV for image circle
92° at 3.6mm image circle
Image circle
4,5mm
Construction
Hybride
Body material
Metal
Filter
IR intégré
Color
Black
Taille du capteur maximale
1/4"
Champ de vision maximum
120° à 90°
Focale
2 à 5 mm
Résolution
1 à 3 Mpx
Ouverture
Inférieur ou égal à 2
