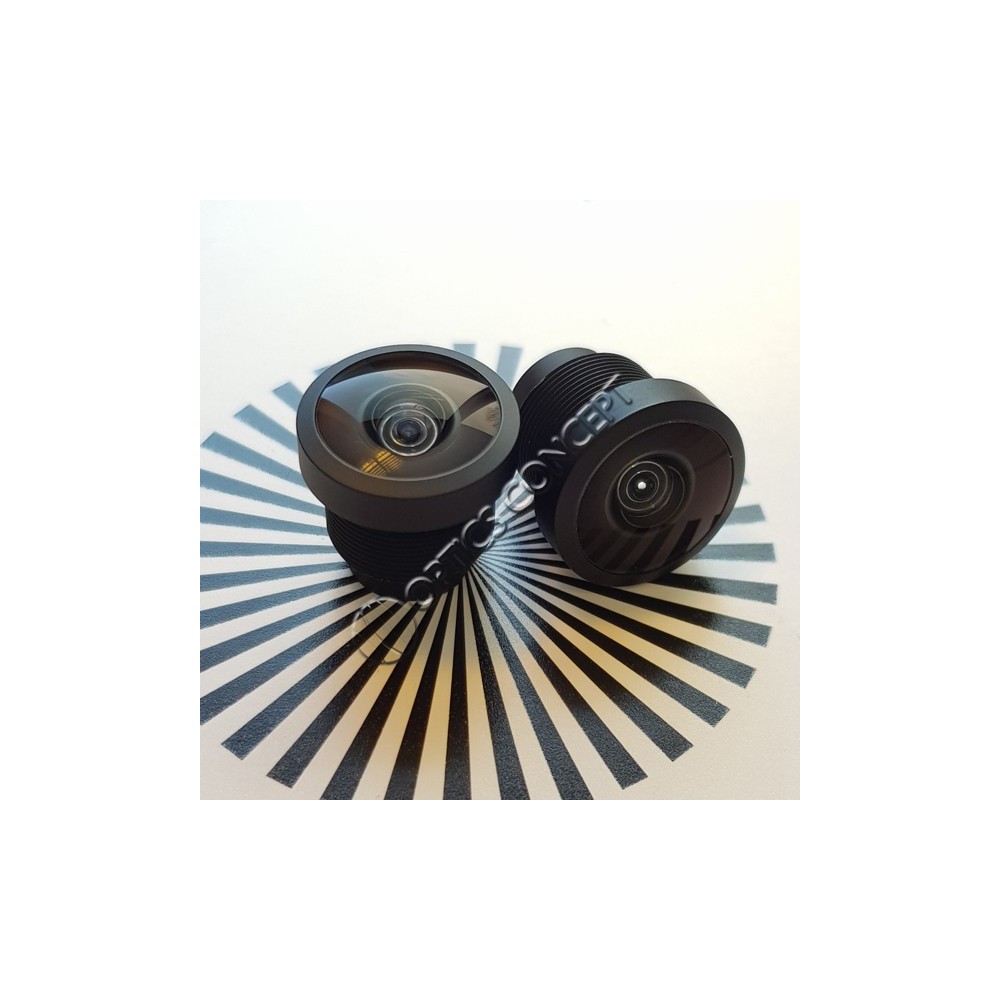

Lens DSL180

The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.

NIR versions: No IR cut filter

DSL180A-690-F2.0
€68.08

Versions

Volume discounts
Quantity Discount You Save
5 3% Up to €10.21
10 5% Up to €34.04

Quantity

Shipment within 2 to 3 weeks
Description

Key Features :

Tailored DistortionTM
Maximum 200° FOV
F/2.0 aperture for low-light performance
Compact size: 17mm total track length


Applications:

Automotive Rear Vision
Automotive Surround Vision
Security/Surveillance
Internet of Things (IoT)
Computer vision
Lens barrel thread
M12 x 0,50
Focal length
0,97mm
Sensor size
1/2,8"
Resolution
1,3MP
F/#
F/2.0
Distortion
+14% from F-θ
Back focus
2,1mm
Description
Miniature super-fisheye
Height
16mm
Diameter
16mm
Total length
17,1mm
Maximum FOV for image circle
3,84
Image circle
200° at 3,8mm
Construction
Hybride
Body material
Metal
Filter
IR intégré / NIR
Taille du capteur maximale
1/2.5"
Champ de vision maximum
Supérieur à 175°
Focale
0 à 2 mm
Résolution
1 à 3 Mpx
Ouverture
Inférieur ou égal à 2
