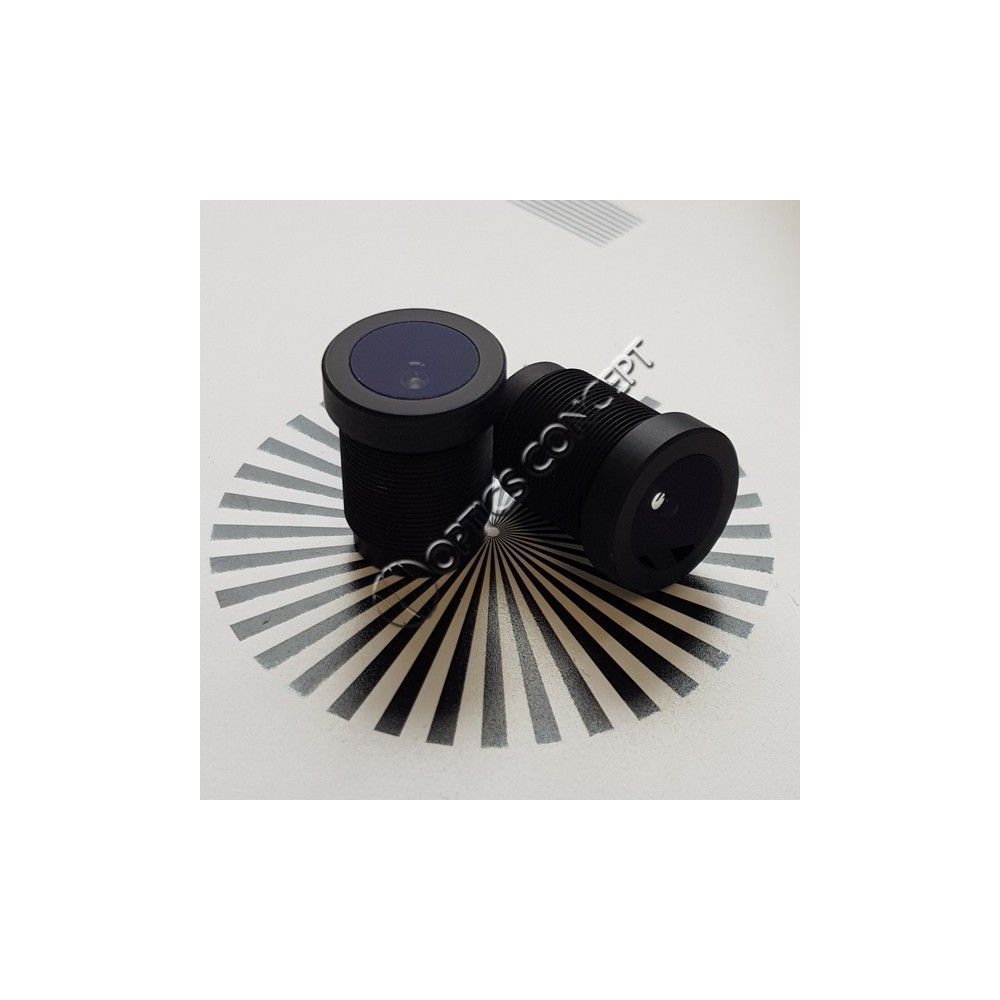

Lens DSL213A

The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.

NIR versions: No IR cut filter

DSL213A
€58.13

Versions

Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Shipment within 2 to 3 weeks
Description

Key Features :

• Day/Night NIR Corrected
• F/2.0 for excellent low-light performance
• All glass construction to optimize thermal stability

Applications :

• Security/Surveillance
• Wearable Cameras
• Computer Vision

Description
Miniature Wide-angle and Day/night
Height
17,8mm
Lens barrel thread
M12 x 0,50
Total length
20,0mm
Back focus
2,23mm
Focal length
3,0mm
Maximum FOV for image circle
106 ̊ at 4.8mm image circle 170 ̊ at 6.0mm image circle
Sensor size
1/3"
Image circle
6,0mm
Resolution
2,0MP
F/#
F/2.0
Distortion
-33% from F-θ
Construction
Hybride
Taille du capteur maximale
1/3"
Champ de vision maximum
175° à 120°
Focale
2 à 5 mm
Résolution
1 à 3 Mpx
Ouverture
Inférieur ou égal à 2
