• Designed for multi-megapixel resolution sensors • Full field of view of up to 140° • High brightness, F/2.6 aperture • All glass design provides environmental stability
Applications :
• Security and surveillance • Automotive rear view cameras

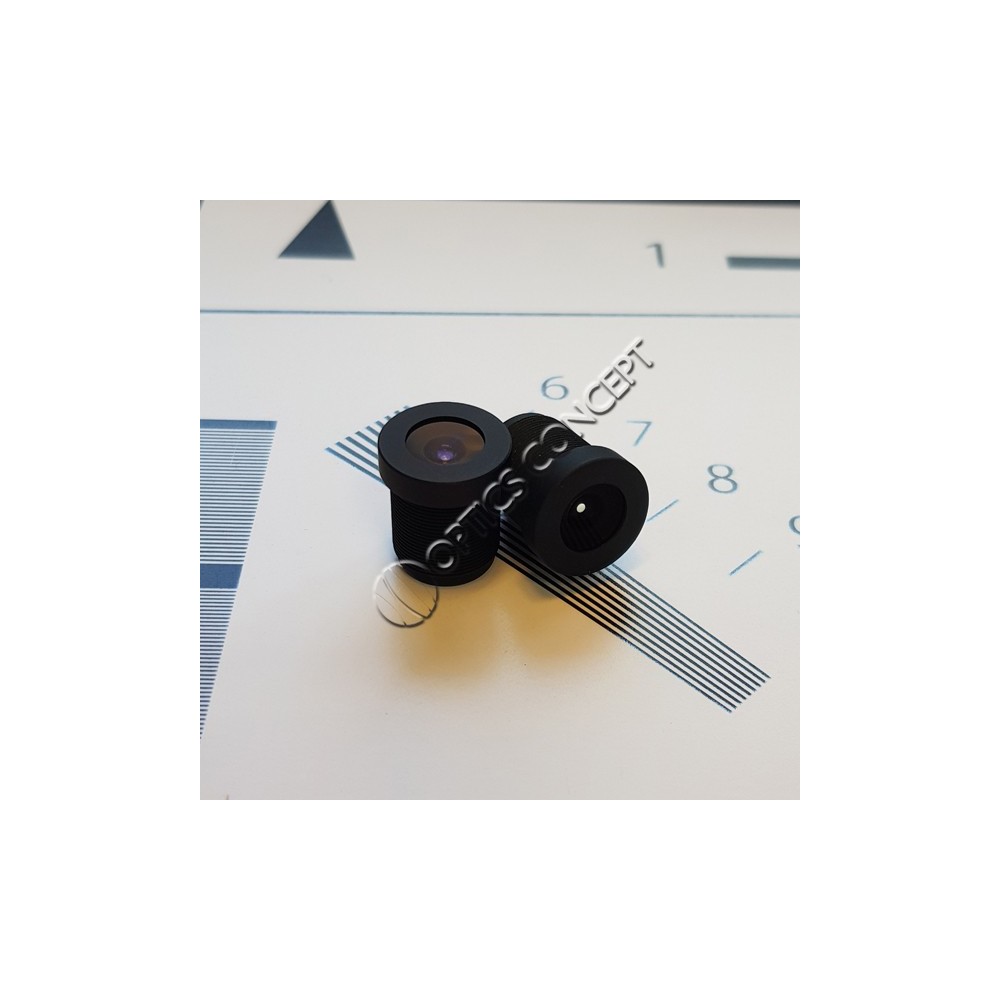

The DSL203 lens is a miniature, wide-angle lens optimized for security and automotive applications. Great resolution and an all-glass design means stable, high- quality imaging for a variety of indoor and outdoor applications.
DSL203A
Data sheet
Lens barrel thread
M12 x 0,50
Focal length
2,8 mm
Sensor size
1/3"
Resolution
Multi-megapixel
Multi-mégapixel
F/#
F/2.6
Distortion
-18% f-θ
Back focus
4,9 mm
Description
Miniature wide-angle lens
Height
20,5 mm
Diameter
14 mm
Total length
20,5 mm
Maximum FOV for image circle
140°
Image circle
5,7mm
Construction
Hybride
Body material
Metal
Color
Black
Taille du capteur maximale
1/3"
Champ de vision maximum
175° à 120°
Focale
2 à 5 mm
Ouverture
2 à 3
DSL203A Wide Angle Security Lens
Key Features :
• Designed for multi-megapixel resolution sensors • Full field of view of up to 140° • High brightness, F/2.6 aperture • All glass design provides environmental stability
Applications :
• Security and surveillance • Automotive rear view cameras
