Reference: DSL947B-700-F1.6
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition

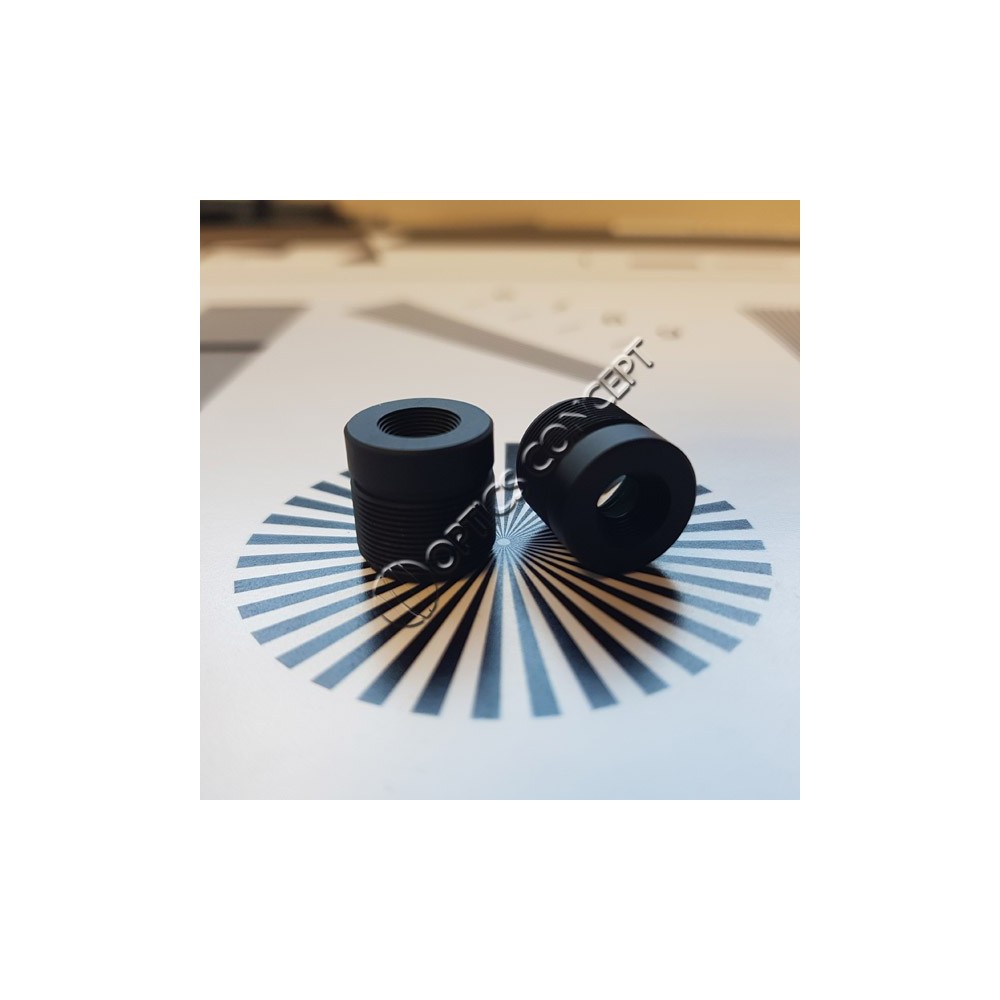

The DSL947 lens is a compact lens designed for automotive forward machine vision (sensing) and wing mirror replacement cameras using high dynamic range (HDR) sensors with 1MPx resolution or more. The lens features a low F-nbr required for good light performance and high frame rate applications. The all-glass design provides stable image quality over a wide temperature range.
Data sheet
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition
DSL261
Key Features :
•. Ultra-wide FOV: 160°
• Sunex NoGhostTM HDR-Optimized design
• All-Glass Design for thermal stability
• Good low light performance: F/2.8 aperture
• Compact size
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.
Available in NIR versions: No IR cut filter
DSL355A-650-F2.8
Key Features :
• Miniature Wide Angle Lens
• Compact size
• High image quality
• Low distortion
Applications :
• Security / Surveillance
• Telecommunications / Video-Conferencing
• Action Cameras
The DSL202 lens is a multi-element glass lens optimized for imager sizes up to 1/3" format and HD resolution. The all glass, all metal construction enables good thermal stability. The DSL202 is also environmentally ruggedized
Key Features
•Wide field of view
•All glass elements
Applications
• Rear-view Automotive
• Security & Surveillance
• Industrial
DSL203A Wide Angle Security Lens
Key Features :
• Designed for multi-megapixel resolution sensors
• Full field of view of up to 140°
• High brightness, F/2.6 aperture
• All glass design provides environmental stability
Applications :
• Security and surveillance
• Automotive rear view cameras
Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.
DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens
Key Features :
• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.
Maintains large field properties for your camera and HD quality.
It will bring you images with very low distortion and optimum color resolution.
The prefered optical of drone owners.
Choose your filter : we can offer a version for infrared observations.
DSL419B-650-F2.0
Key Features :
• SuperFisheye FOV: 180°
• All-Glass Design• Good low light performance: F/2.0 aperture
• Compact size
Applications :
• Security and Surveillance
• Drones
• Immersive Imaging
• Video Communication
• Consumer Devices and IoT
The DSL945 is a 4K lens designed for 1/2.3” imagers with up to 10MP resolution. The high resolution of this lens makes it ideal for scanning and finite conjugate machine vision applications.
Key Features :
• Wide angle, low distortion
• High performance compact design
• Finite conjugate optimized
Applications :
• Document scanning
• Video-conferencing
• Finite Imaging
The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Key Features :
• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).
