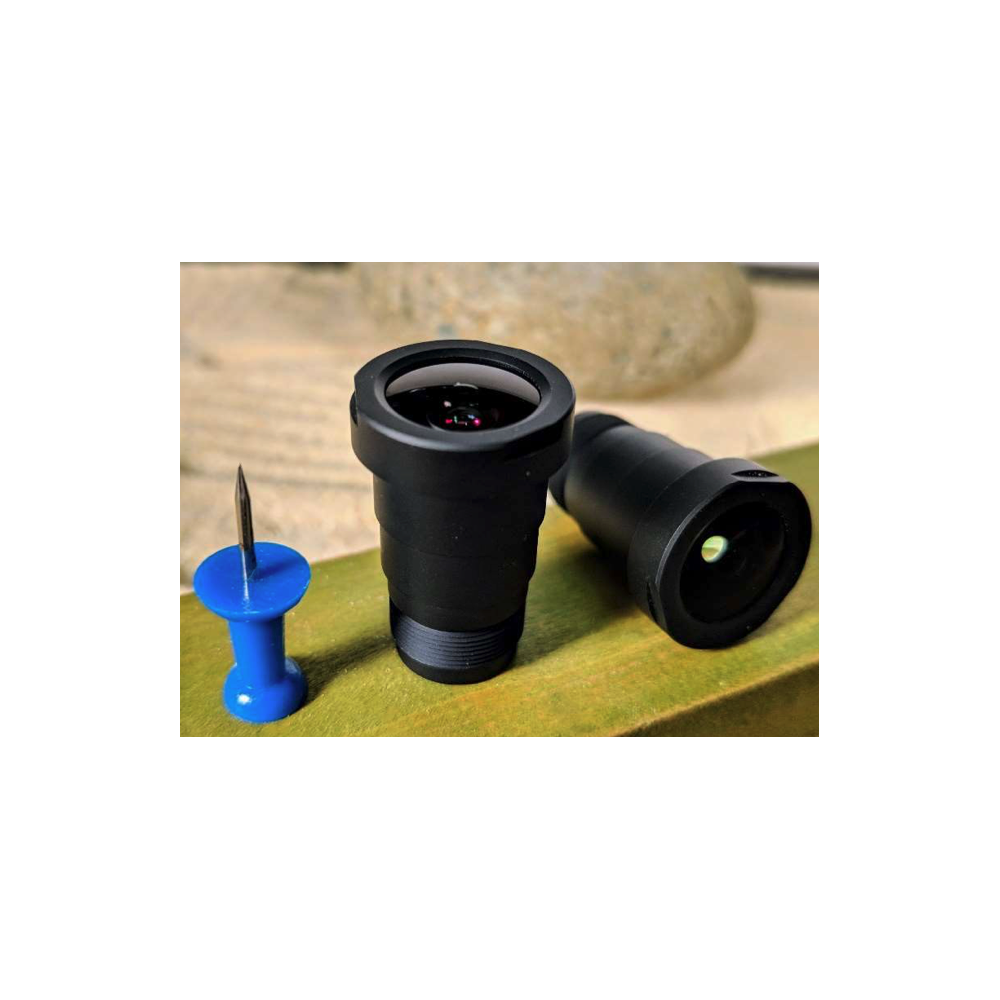

Reference: DSL146A-650-F1.4
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
Key Features :
• F/1.4 Aperture
• Wide-Angle; 94° HFOV @ 5.2mm (typical 1/2.8" horizontal)
• 4K (6-8mp) resolution on 1/3" and 1/2.8" sensors
• All glass/metal construction
Applications :
• Security
• Automotive/ADAS
• Autonomous Vehicles
• Commercial Drones
Data sheet
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
DSL203A Wide Angle Security Lens
Key Features :
• Designed for multi-megapixel resolution sensors
• Full field of view of up to 140°
• High brightness, F/2.6 aperture
• All glass design provides environmental stability
Applications :
• Security and surveillance
• Automotive rear view cameras
Key Features :
• All glass construction to optimize thermal stability
• Low F/# for improved low light performance
• Compact size
Applications :
• Security and Surveillance
• Drone cameras
• Immersive Imaging
The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
DSL355A-650-F2.8
Key Features :
• Miniature Wide Angle Lens
• Compact size
• High image quality
• Low distortion
Applications :
• Security / Surveillance
• Telecommunications / Video-Conferencing
• Action Cameras
Key Features :
• F/1.7 for enhanced low light sensitivity
• All glass to optimize thermal stability
• Low stray light for HDR sensors
Applications :
• Automotive Forward Machine Vision (Sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Security Cameras
• Computer Vision
The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
NIR versions: No IR cut filter
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size
Compatibility GoPro ® HERO 1 HERO 2 HERO 3, HERO 3+ and HERO 4®
This objective is part of a new optical generation. There is no better in technology .
This optical record with a field of view of 90 °.
DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens
Key Features :
• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
The DSL978 is a compact, low F/# lens designed for low light HD/HDR applications. This lens is optimized for useHD sensors with imager format up to 1/3”. The all-glass design provides stable image quality over a wide temperature range.
Key Features :
• NoGhostTM
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent Thermal Stability
The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT
Compatibility GoPro ® HERO 1, HERO 2, HERO 3, HERO 3+ and HERO 4®
For shooting with reduced fields the DSL 608 covers 45 ° in wide mode.
A lens with an impeccable quality.
