• Maximum field of view (FOV): 185o • F/1.8 aperture for low-light performance • Hybrid glass-plastic design • Suitable for megapixel resolution sensors

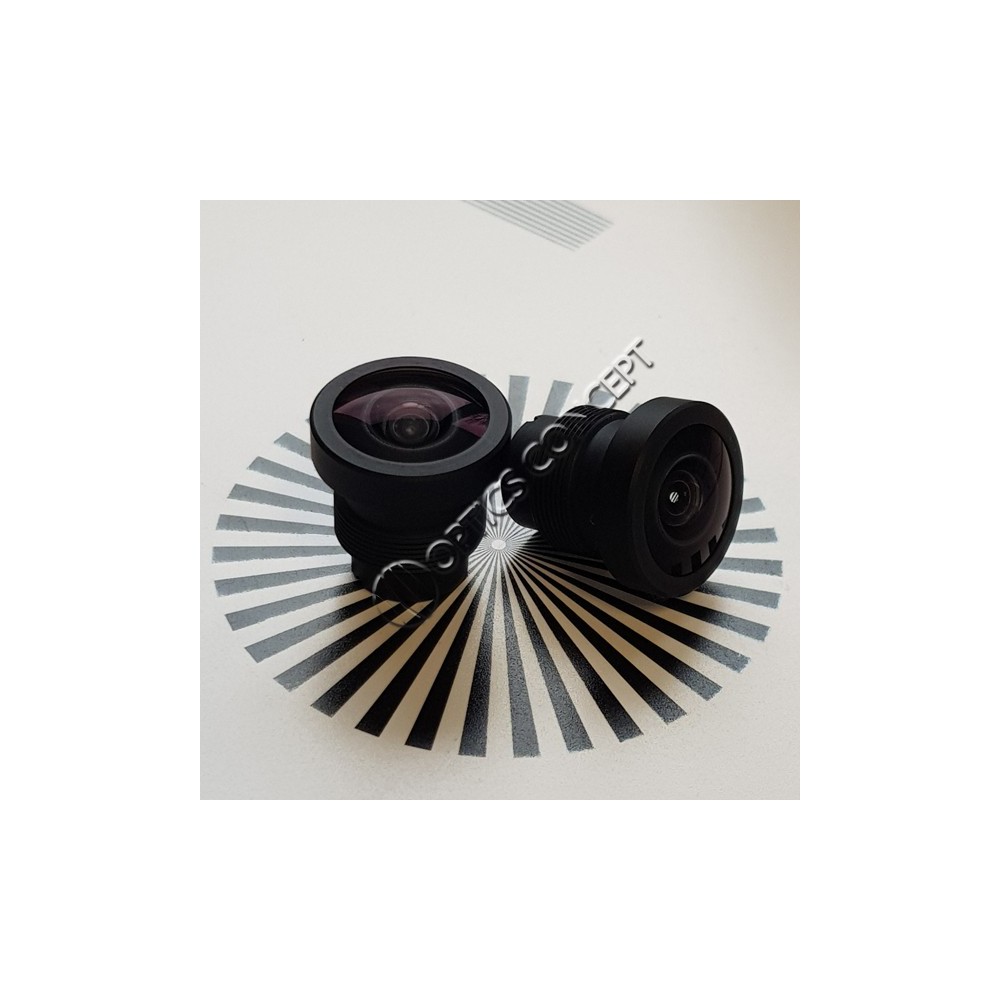

The DSL217 lens is a miniature, high-resolution SuperFisheyeTM lens designed with a horizontal field of view greater than 180 degrees on 1/4” to 1/2.8” format imagers with up to 5MP resolution. These features, along with a low F/#, make the DSL217 ideal for low light applications in the security market.
DSL217C-670
Data sheet
Lens barrel thread
M12 x 0,50
Focal length
1,3mm
Sensor size
1/2,8"
Resolution
3MP-5MP
F/#
F/1.8
Distortion
-9% F-θ
Back focus
2,4mm
Description
Miniature super-fisheye
Height
18,00mm
Diameter
15,2mm
Total length
18,00mm
Maximum FOV for image circle
127° pour cercle image 2,7mm185° pour cercle image 3,8mm
Image circle
3,8mm
Construction
Hybride
Filter
IR intégré
Color
Black
Taille du capteur maximale
1/2.5"
Champ de vision maximum
Supérieur à 175°
Focale
0 à 2 mm
Résolution
3 à 5 Mpx
Ouverture
Inférieur ou égal à 2
DSL217C-670-F1.8
