Reference: DSL936D-650-F3.2

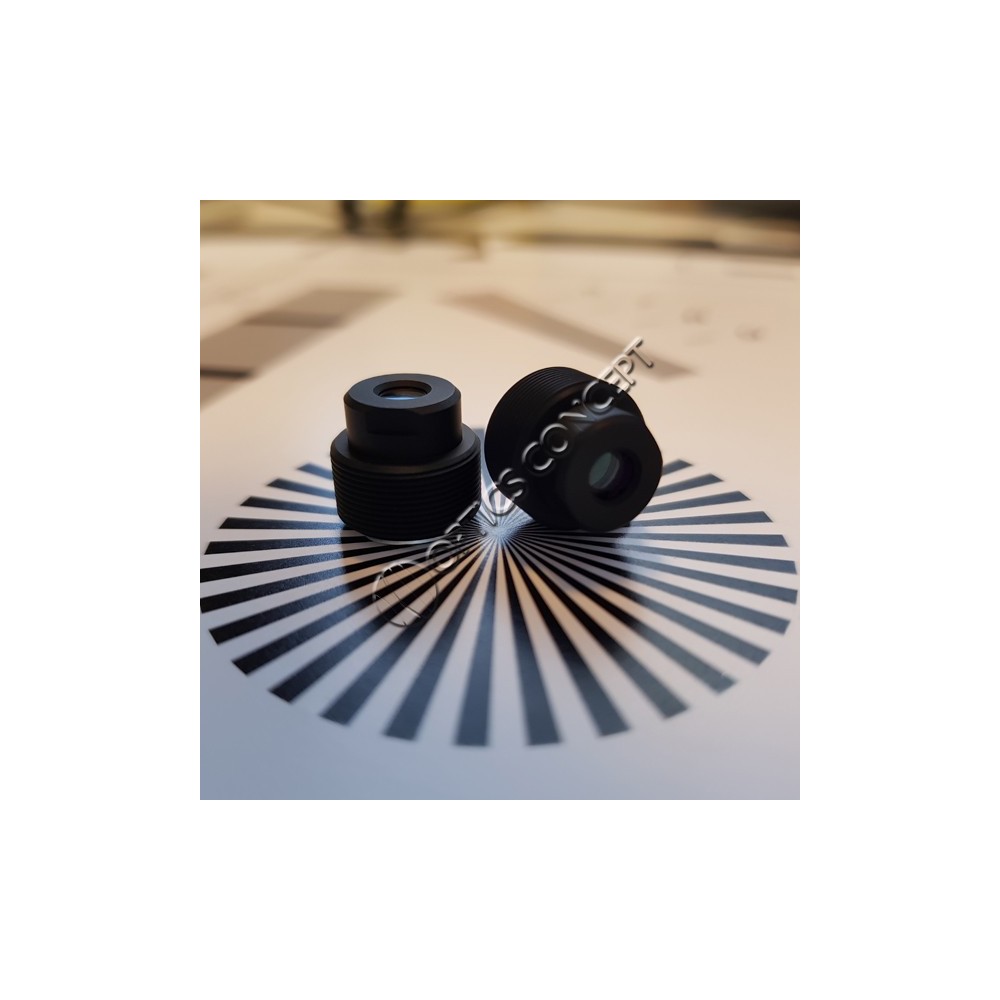

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
Key Features :
• Day/Night (Near IR) Corrected
• Compact Size
Applications :
• Finite Imaging
• Biometrics
• Computer vision
Data sheet
The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
The DSL612 lens is a miniature 4K HDR lens designed for HDR or standard sensors up to 1/1.8” format size. The low F-number, thermal stability and Sunex LowGhostTM HDR characteristics make this lens ideal for security, wearable, drone and video-conferencing applications where high sharpness and environmental stability are required.
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
A brand new lens with 60°FOV. Perfect for new 4K sensors
Compatibility : GoPro® HERO1, HERO2, HERO3, HERO3+ and HERO4®.
This lens belongs to a new optical design generation. The DSL606 offer the best technology.
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
NIR versions: No IR cut filter
The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.
NIR versions: No IR cut filter
Compatibility GoPro ® HERO 1 HERO 2 HERO 3, HERO 3+ and HERO 4®
This objective is part of a new optical generation. There is no better in technology .
This optical record with a field of view of 90 °.
DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
The DSL202 lens is a multi-element glass lens optimized for imager sizes up to 1/3" format and HD resolution. The all glass, all metal construction enables good thermal stability. The DSL202 is also environmentally ruggedized
Key Features
•Wide field of view
•All glass elements
Applications
• Rear-view Automotive
• Security & Surveillance
• Industrial
The DSL949 is a hybrid lens designed for 1/3” imagers withup to 5MP resolution. Special design techniques enable the DSL949 to achieve a wider than normal field of view with very low distortion in a small form factor.
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size
DSL311A 650F2.8
Key Features :
• 151° FOV
• F/2.8
• 22mm TTL
Applications:
• Security/Surveillance
• Automotive Rear-view
• Sports and Wearable Cameras
DSL208 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
