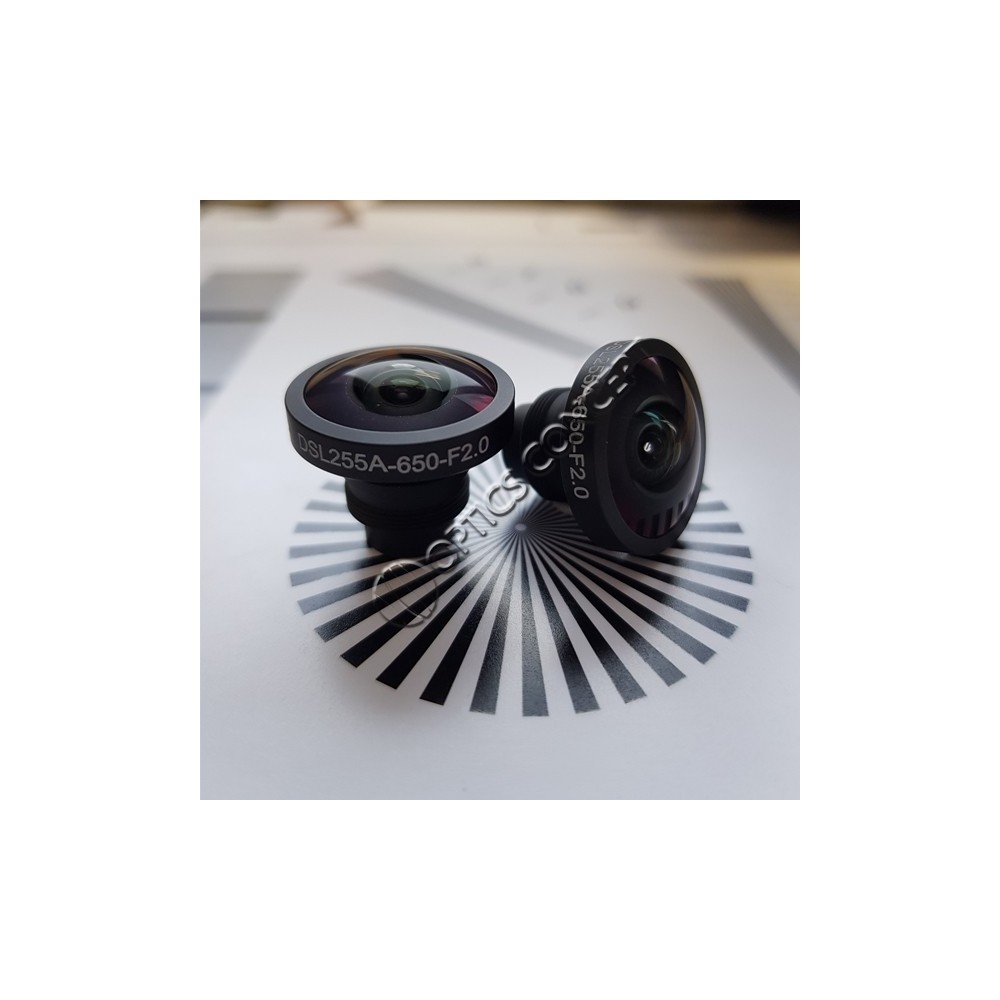

Reference: DSL255A-650-F2.0
Lens DSL255
€140.93
Tax included
The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
4K Miniature SuperFisheyeTM Lens
• SuperFisheye FOV: 190°
• All-Glass Design
• Good low light performance: F/2.0 aperture
• Compact size
DSL255A-650-F2.0
Data sheet
- Lens barrel thread
- M12 x 0,50
- Focal length
- 1,5mm
- Sensor size
- 1/2"
- Resolution
- 10MP
- F/#
- F/2.0
- Distortion
- -13% F-θ
- Back focus
- 1,43mm
- Description
- Miniature super-fisheye
- Height
- 18,6mm
- Diameter
- 20,2mm
- Total length
- 20,00mm
- Maximum FOV for image circle
- 190° to 4,3mm image circle
- Image circle
- 4,3mm
- Construction
- Hybride
- Filter
- IR intégré
- Color
- Black
- Taille du capteur maximale
- 1/2" ou plus grand
- Champ de vision maximum
- Supérieur à 175°
- Focale
- 0 à 2 mm
- Résolution
- 4K et plus
- Ouverture
- Inférieur ou égal à 2
The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
