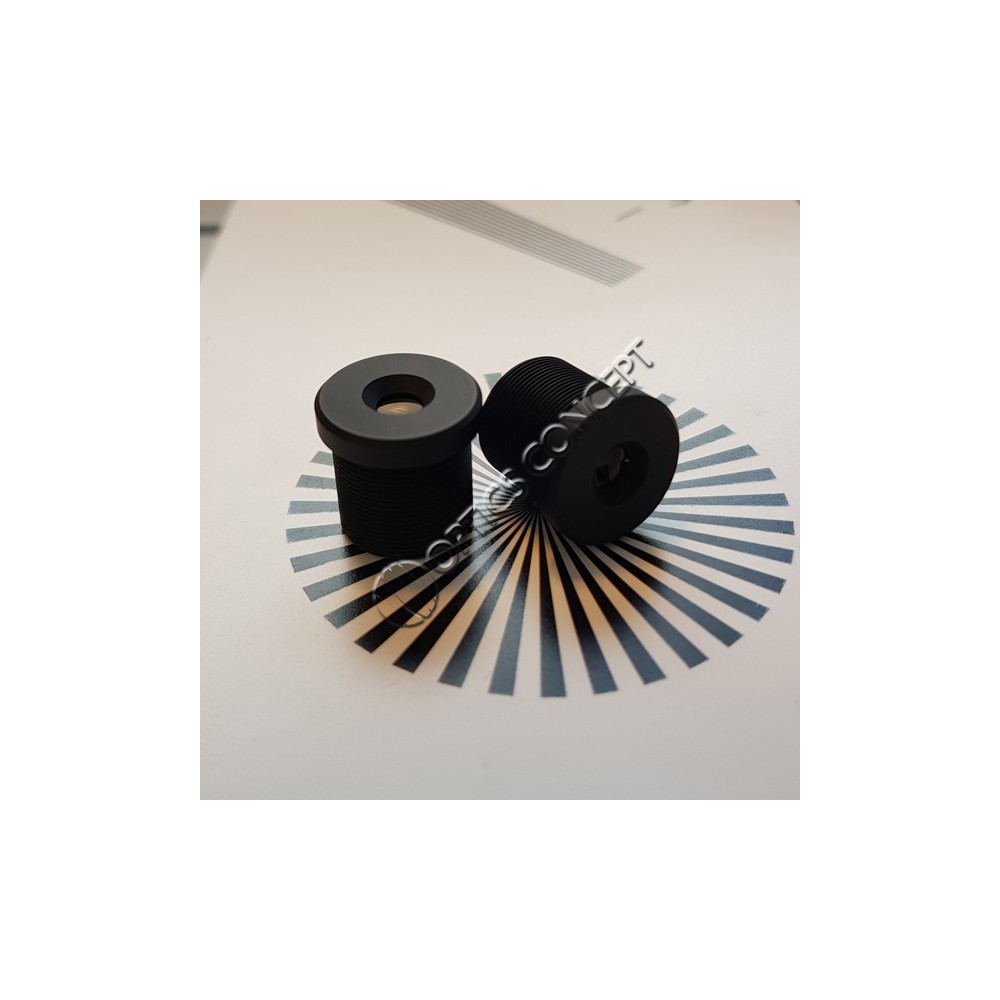

Lens DSL901

The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.

*NIR = without IR cut filter

DSL901J
€58.13

Versions

Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Shipment within 2 to 3 weeks
Description

Key Features :

•  Compatible with large format imagers
•  All-glass to optimize thermal stability

Applications :

• Security / Surveillance
• Machine vision

Lens barrel thread
M12 x 0,50
Focal length
12,0mm
Sensor size
2/3"
Resolution
1,3Mp
F/#
F/3.0
Back focus
7,4mm
Description
Miniature
Height
13,5mm
Diameter
14,0mm
Total length
20,9mm
Maximum FOV for image circle
33 ̊ at 7.1mm image circle -39 ̊ at 8.5mm image circle -50 ̊ at 11.0mm image circle
Image circle
12,0mm
Construction
Hybride
Body material
Metal
Filter
IR intégré
Color
Black
Taille du capteur maximale
1/5" ou plus petit
Champ de vision maximum
Inférieur à 45°
Focale
Supérieur à 10 mm
Résolution
1 à 3 Mpx
Ouverture
Supérieur à 3
