Reference: DSL958G-650-F1.7

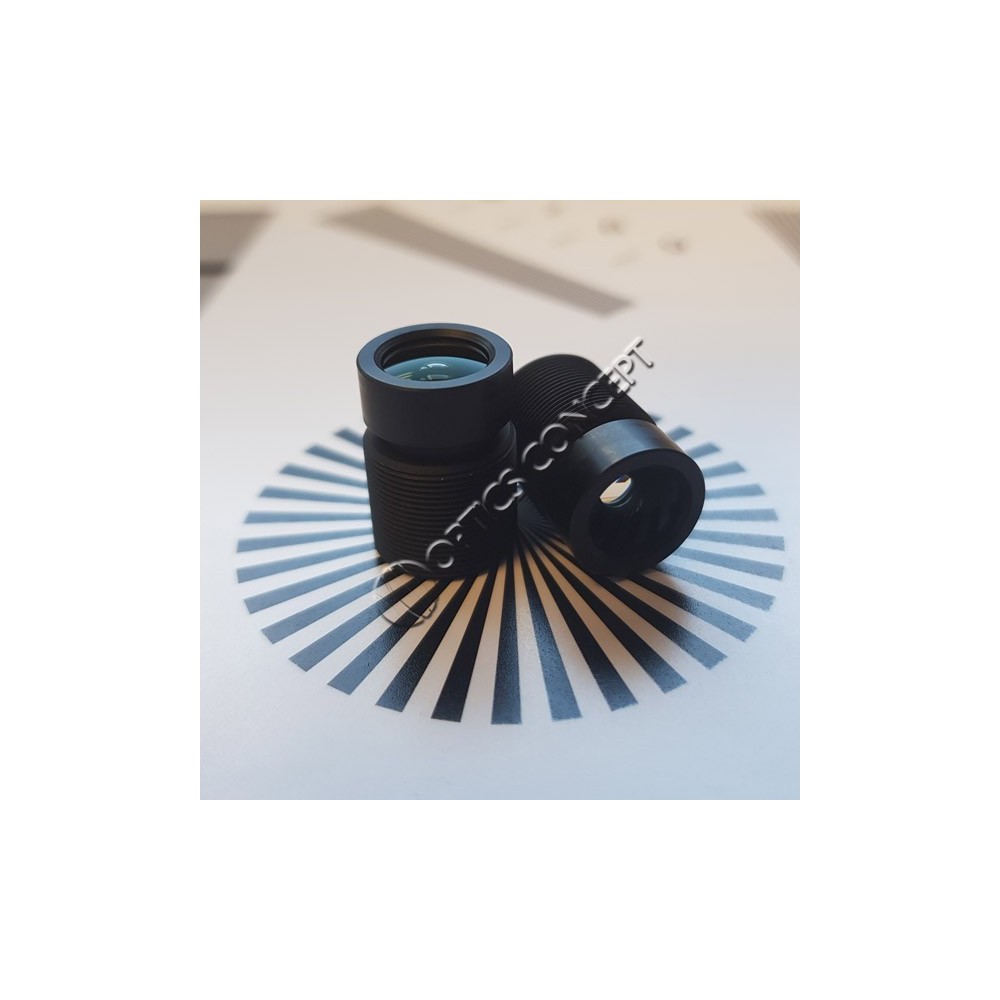

Lens DSL958G
€95.30
Tax included
Key Features :
• F/1.7 for enhanced low light sensitivity
• All glass to optimize thermal stability
• Low stray light for HDR sensors
Applications :
• Automotive Forward Machine Vision (Sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Security Cameras
• Computer Vision
The DSL958 lens is an all-glass lens designed for HD/HDR imagers with up to 1/3” format. Special optical design and process techniques are applied to achieve high resolution and low F/# with minimized stray light and ghosting.
DSL958G-650-F1.7
Data sheet
- Lens barrel thread
- M12 x 0,50
- Focal length
- 4,6 mm
- Sensor size
- 1/3"
- Resolution
- 1,3 MP
- F/#
- F/1.7
- Distortion
- 17%
- Back focus
- 4,4 mm
- Description
- Miniature wide-angle lens
- Height
- 17,4 mm
- Diameter
- 11,5 mm
- Total length
- 21,1 mm
- Maximum FOV for image circle
- 76° at 6.0mm image circle
- Construction
- Hybride
- Body material
- Metal
- Filter
- IR intégré
- Color
- Black
- Taille du capteur maximale
- 1/3"
- Champ de vision maximum
- 90° à 45°
- Focale
- 2 à 5 mm
- Résolution
- 1 à 3 Mpx
- Ouverture
- Inférieur ou égal à 2
Key Features :
• F/1.7 for enhanced low light sensitivity
• All glass to optimize thermal stability
• Low stray light for HDR sensors
Applications :
• Automotive Forward Machine Vision (Sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Security Cameras
• Computer Vision
