Reference: DSL216A
Lens DSL216A
€140.93
Tax included

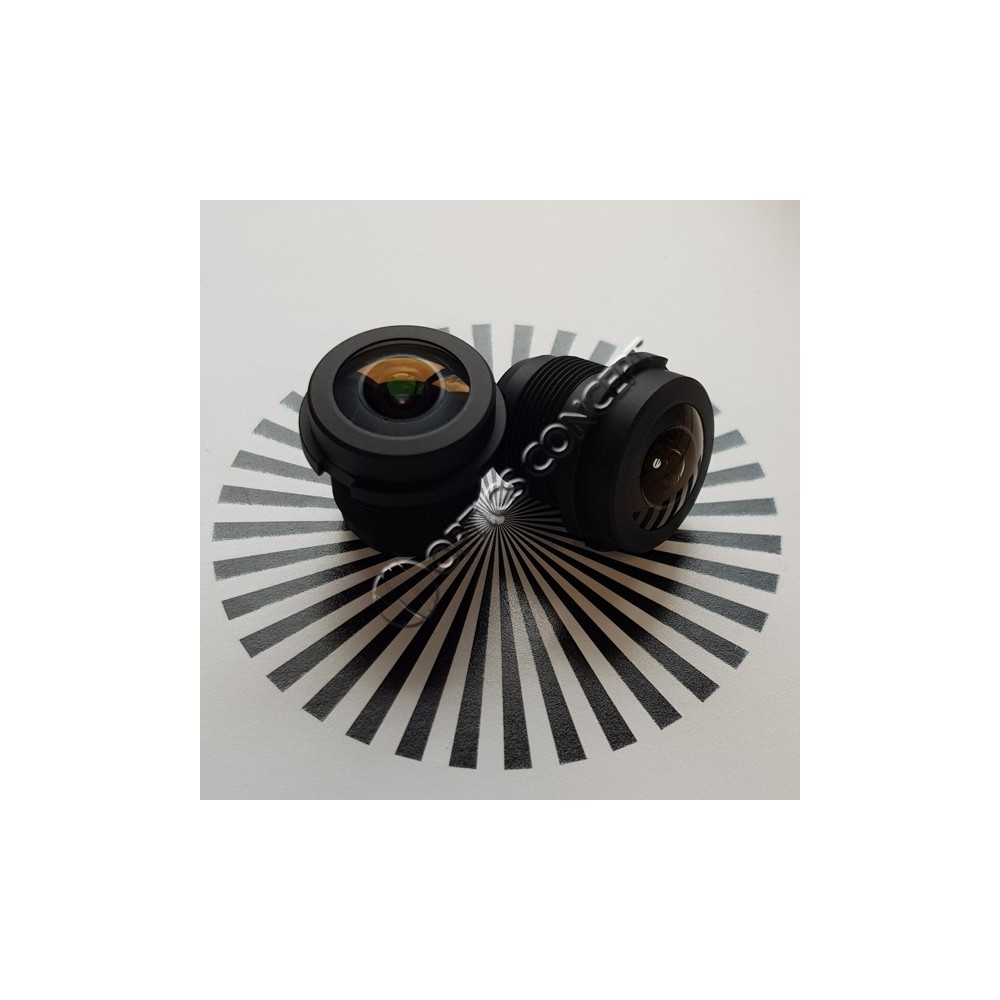

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
Key Features
• Horizontal field of view: 187°
• Suitable for multi-megapixel resolution
• All glass elements to optimize thermal stability
DSL216A
Data sheet
- Lens barrel thread
- M12 x 0,50
- Focal length
- 1,3mm
- Sensor size
- 1/3"
- Resolution
- 3MP-5MP
- F/#
- F/2.0
- Distortion
- -13% F-θ
- Back focus
- 2,0mm
- Description
- Miniature super-fisheye
- Height
- 18,05mm
- Diameter
- 14,1mm
- Total length
- 18mm
- Maximum FOV for image circle
- 137° pour cercle image 2,8mm187° pour cercle image 3,6mm
- Image circle
- 3,6mm
- Construction
- Hybride
- Filter
- IR intégré
- Color
- Black
- Taille du capteur maximale
- 1/3"
- Champ de vision maximum
- Supérieur à 175°
- Focale
- 0 à 2 mm
- Résolution
- 3 à 5 Mpx
- Ouverture
- Inférieur ou égal à 2
DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
