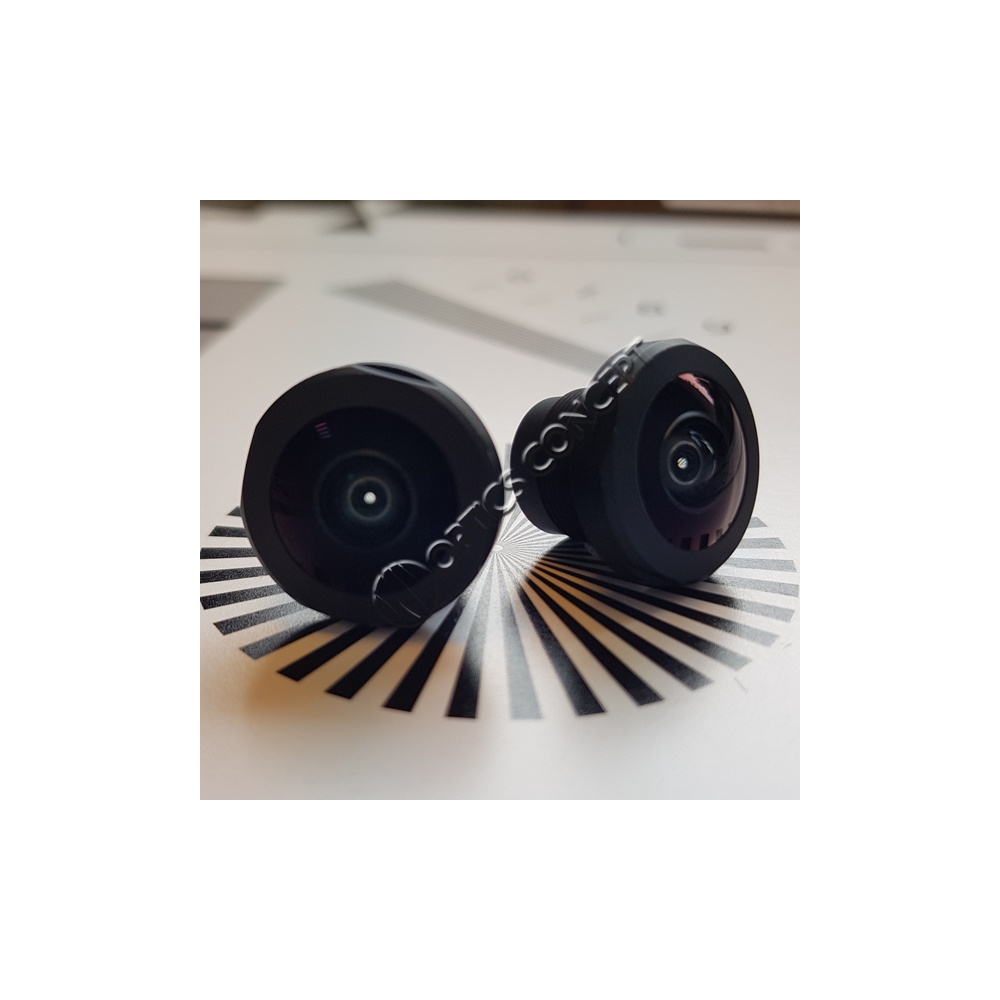

Lens DSL181

The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

DSL181B-650-F2.2
€58.13

Versions

Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Shipment within 2 to 3 weeks
Description

Key Features :

• SuperFisheye FOV: 190°• Tailored DistortionTM
• Superior low light performance: F/2.2 aperture
• Compact size

Applications :

• Automotive Surround View
• Security and Surveillance
• Internet of Things (IoT)
• Computer Vision

Description
Miniature super-fisheye
Width
15mm
Diameter
17,6mm
Lens barrel thread
M12 x 0,50
Total length
16,5mm
Back focus
1,5mm
Focal length
1,25mm
Maximum FOV for image circle
190° at 4,8 mm image circle
Sensor size
1/2"
Image circle
4,8mm
Resolution
2MP
F/#
F/2.2
Distortion
+15.3% from F-θ
Construction
Hybride
Filter
IR / NIR
Taille du capteur maximale
1/2" ou plus grand
Champ de vision maximum
Supérieur à 175°
Focale
0 à 2 mm
Résolution
1 à 3 Mpx
Ouverture
2 à 3
