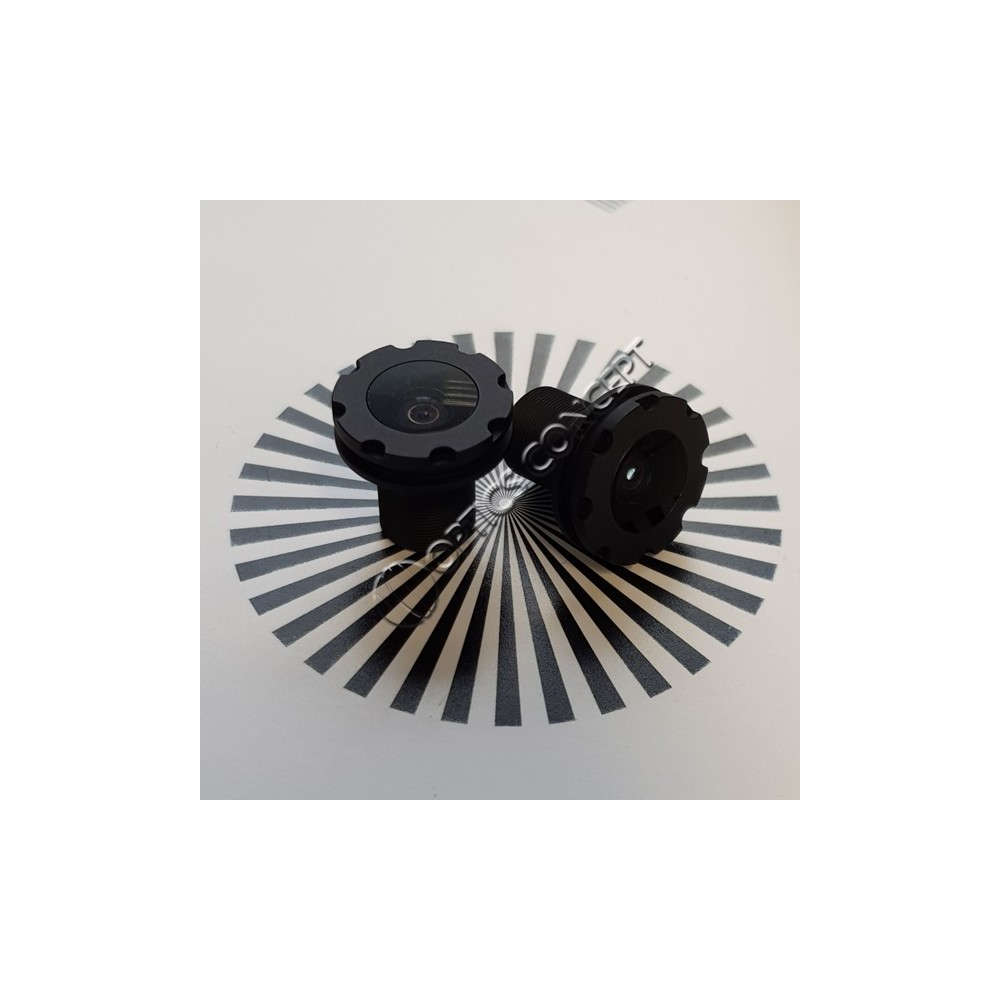

Lens DSL235D

The DSL235 is a miniature wide angle lens designed for 2-3MP image sensors with 1/3” format. The DSL235 isoptimized for Day/Night applications with active illumination in the Near Infrared, which makes it ideal for space constrained applications utilizing 850nm or 940nm active illumination.

DSL235D
€58.13
Volume discounts
Quantity Discount You Save
5 3% Up to €8.72
10 5% Up to €29.07

Quantity

Shipment within 2 to 3 weeks
Description

Key Features :

•  Hybrid design to reduce size
•  Day/Night optimized
•  Wide Angle field of view

Applications :

•  Wearable cameras
•  Security/Surveillance
•  Consumer cameras

Lens barrel thread
M8 x 0,50
Focal length
3,0mm
Sensor size
1/3"
Resolution
2MP-3MP
F/#
F/3.2, F/2.2
Distortion
-28% F-θ
Back focus
1,4mm
Description
Miniature wide-angle lens
Height
15,04mm
Diameter
12,0mm
Total length
15mm
Maximum FOV for image circle
160° pour cercle image 6,0mm
Image circle
6,0mm
Construction
Hybride
Body material
Metal
Filter
IR intégré
Color
Black
Taille du capteur maximale
1/3"
Champ de vision maximum
175° à 120°
Focale
2 à 5 mm
Résolution
1 à 3 Mpx
Ouverture
Supérieur à 3
