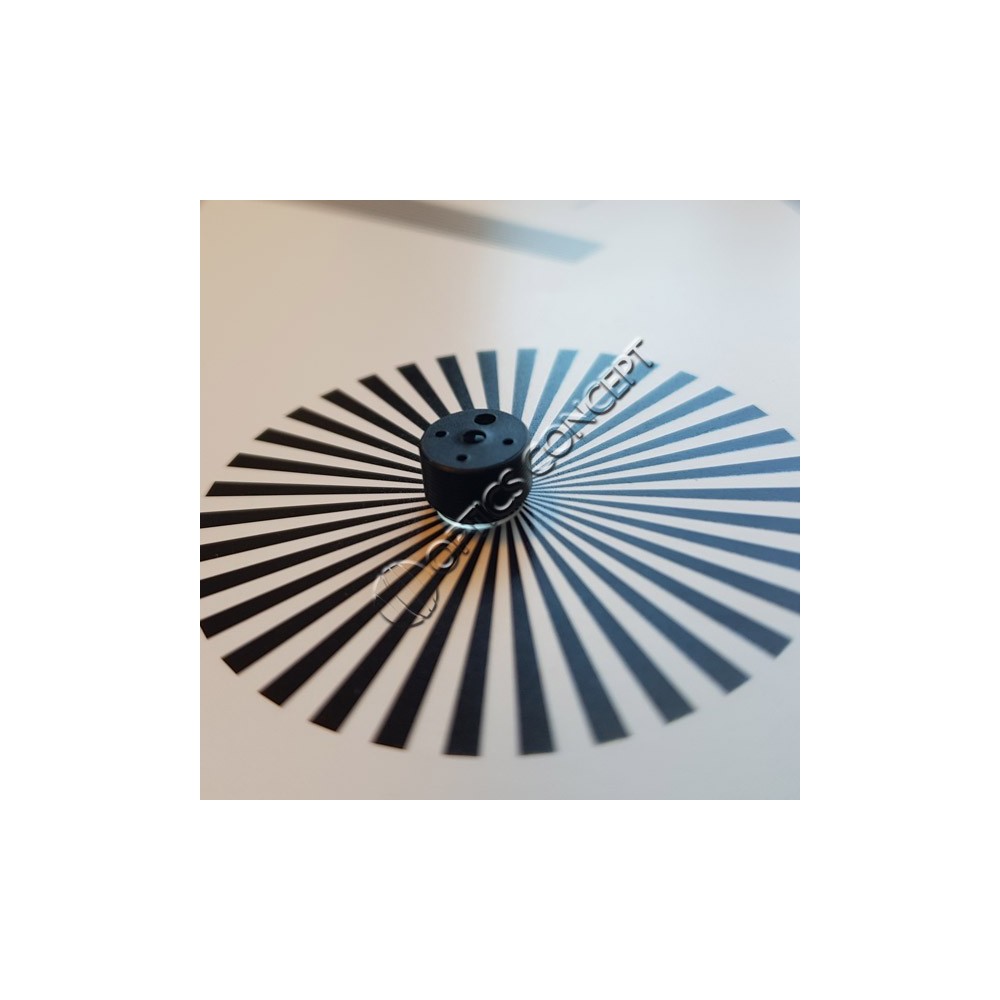

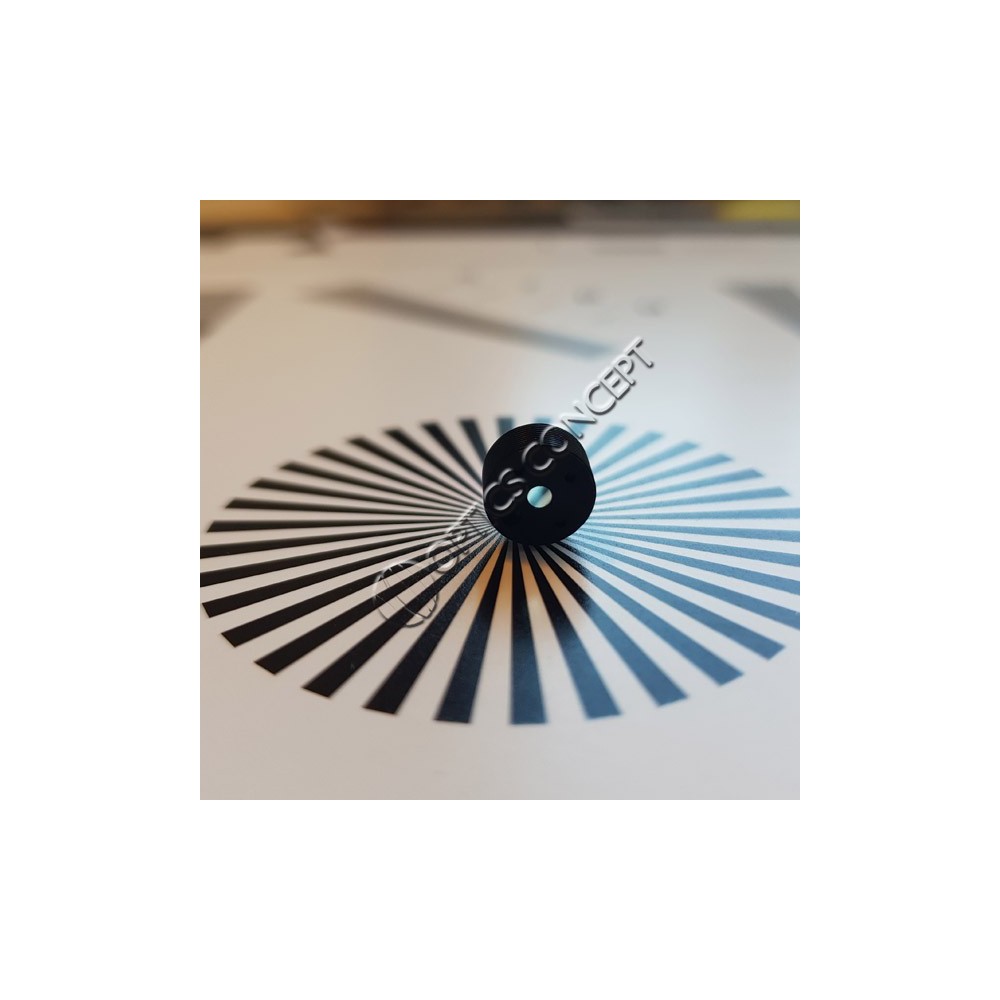

Lens DSL746A

DSL746 is a low-cost lens optimized for 1.3 Mega pixel CCD/CMOS camera phones with an imager circle up to 1/3” format (Micron PN: MT9M111)

Key Features :

• Lens total track: 6.4mm to the image plane
• Design image circle: up to 1/3” format
• Hybrid design for focus thermal stability
• Low-cost

Applications :

• Embedded cameras for cell phones.
• Compact digital cameras
• Compact camera modules

DSL746A-650-F2.8
€35.00
Volume discounts
Quantity Discount You Save
5 3% Up to €5.25
10 5% Up to €17.50

Quantity

Shipment within 2 to 3 weeks
Product Details
Lens barrel thread
M8 x 0,35
Focal length
4,9 mm
Sensor size
1/3"
Resolution
1,3 MP
F/#
F/2.8
Distortion
-1%
Back focus
0,3mm
Description
Miniature compact
Height
6,6 mm
Total length
6,4mm
Maximum FOV for image circle
60° at 4,9 mm for image circle
Construction
Hybride
Body material
Metal
Filter
IR intégré
Color
Black
Taille du capteur maximale
1/3"
Champ de vision maximum
90° à 45°
Focale
2 à 5 mm
Résolution
1 à 3 Mpx
Ouverture
2 à 3
