• Wide field of view : 126 deg HFOV on 1/3” imager • Excellent low light performance: F/2.0 aperture • All glass elements providing environmental stability • Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).

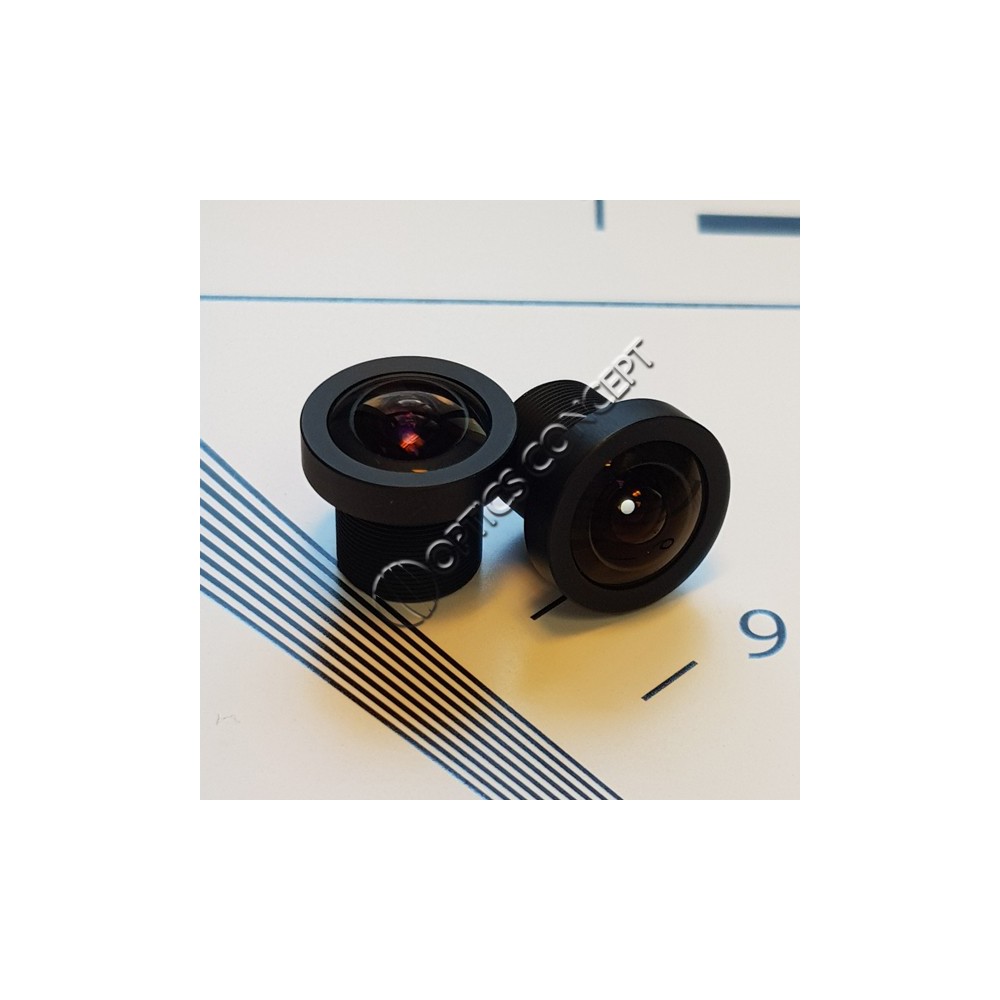

The DSL210 lens is a miniature wide-angle lens optimized for 1/3” format VGA imagers. The wide field of view, low F-number, and low distortion make this lens ideal for security and automotive applications.
The DSL945 is a 4K lens designed for 1/2.3” imagers with up to 10MP resolution. The high resolution of this lens makes it ideal for scanning and finite conjugate machine vision applications.
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
• Maximum field of view (FOV): 185o • F/1.8 aperture for low-light performance • Hybrid glass-plastic design • Suitable for megapixel resolution sensors
The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.
The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.
The DSL935 lens is a multiple element glass lens optimized for 1/1.8” format imagers with up to 5MP resolution. The small form factor makes this lens ideal for high performance handheld cameras.
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
4K Miniature SuperFisheye TM Lens • 190-degree field of view • Compatible with many common sensor formats/resolutions • All glass elements provide environmental stability
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors • Low relative aperture F/1.8 • Face Sealed to IP6K9K • Compact size
